Non-Contact Laser Sensors for Thickness, Distance and Profile Measurement

Acuity Laser is the leading provider of precision laser sensors for distance and thickness measurement, serving manufacturers, system integrators and OEMs since 1992. Tell us what you need to measure and we'll point you to the right sensor.

30+ years in laser measurement Engineer-to-engineer support Pre-engineered thickness systems Custom sensor options
Acuity Laser non-contact laser sensors, including AR-series long-range distance and displacement sensors, on a red laser background

What do you need to measure?

Start with your measurement. Each path shows the sensors, specs and real applications that fit.

Two laser sensors measuring material thickness from above and below, with the live reading on a display

Thickness of sheet, strip or board

Acuity's Pre-Engineered Laser Thickness Measurement System, or individual laser displacement sensors, measure moving sheet, strip and board continuously, in real time.

Recommended: Pre-engineered thickness system; AR700, AR200; confocal for clear film

See thickness solutions →
AS2100 long-range laser distance sensor

Long-range distance and position

Long-range laser distance sensors track cranes, vehicles, levels and large objects at up to 500 m.

Recommended: AS2100 (best seller), AS1100, AR1000, AR2700

See long-range sensors →
AR700 laser displacement sensor for close-range position, height and thickness measurement

Close-range displacement and height

Laser displacement sensors measure position, height and gap precisely over 2 mm to 1,270 mm ranges.

Recommended: AR100, AR200, AR500, AR550, AR700

See short-range sensors →

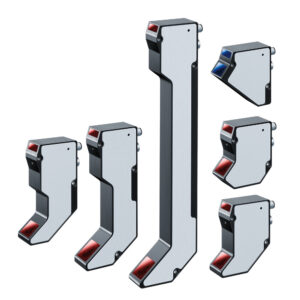

AP820 2D/3D laser line scanners for profile, width and shape measurement

2D/3D profile, width and shape

2D/3D laser line scanners capture full cross-section profiles in one pass, at up to 200 kHz with the C6.

Recommended: AP820 family; C6 compact 3D sensors for high-speed profiling

See 2D/3D scanners →
White-light confocal sensor measuring a wafer surface with sub-micron accuracy

Clear, shiny or micron-level surfaces

White-light confocal sensors measure transparent films and shiny surfaces with sub-micron accuracy.

Recommended: Confocal sensors

See confocal sensors →

Not sure which fits?

Describe your application and a sales engineer will recommend a sensor.

Contact us →
Know your specs? Use the product finder ↓ New to laser measurement? See how to choose the right sensor →
Product finder

Find the Right Laser Sensor Model

Choose short range or long range, enter your specs and compare every matching Acuity model. Tick the ones that fit and request a quote for them.

  1. 1Choose a sensor type
    Short range or long range
  2. 2Enter your specs
    Compare and sort matching models
  3. 3Get a quote
    Tick models, send them to sales
Series
Measuring range (mm)
Base distance (mm)

Range is the measuring span. Base distance is from the sensor face to the start of the range. Blue lasers (AR100, AR500, AR550) help on glowing-hot targets and polished metals.

Showing 44 of 44 short-range models

Measuring thickness, clear materials or profiles? See the pre-engineered thickness system, confocal sensors and 2D/3D laser scanners.

Need help choosing? Show the matching models to compare and tick them, or send us your target, range and speed for a recommendation.
See all 50 models as a list

Acuity makes 44 short-range laser triangulation sensor models in five series (AR100, AR200, AR500, AR550 and AR700), measuring 2 mm to 1,270 mm, and 6 long-range laser distance sensor models (AS2100, AS1100, AR1000 and AR2700) that reach up to 100 m on natural targets and 500 m with a reflector. Full specs and datasheets are on each product page.

Short-range laser triangulation sensors (44 models)

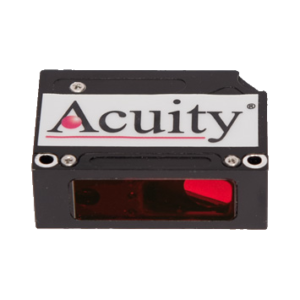

AR100 Super-Compact Laser Triangulation Sensor

6 models · max rate 9,400 Hz · IP67

Part numberRange (mm)Base distance (mm)Linearity (± µm)Resolution (µm)Laser
AR100-10102051Class 2
AR100-25252012.52.5Class 2
AR100-505030255Class 2
AR100-100100555010Class 2
AR100-2502506525025Class 2
AR100-500500105500100Class 2

AR200 Laser Measurement Sensor

5 models · max rate 1,250 Hz · IP65

Part numberRange (mm)Base distance (mm)Linearity (± µm)Resolution (µm)Laser
AR200-66.3518.036.351.9Class 2
AR200-1212.716.8712.73.8Class 2
AR200-2525.421.5925.47.6Class 2
AR200-5050.817.0250.815.2Class 2
AR200-100101.627.94101.630.5Class 2

AR500 Laser Position Sensor

9 models · max rate 9,400 Hz · IP67 · Ethernet output: option

Part numberRange (mm)Base distance (mm)Linearity (± µm)Resolution (µm)Laser
AR500-551550.5Class 2, 3R or 3B
AR500-101025101Class 2, 3R or 3B
AR500-252545252.5Class 2, 3R or 3B
AR500-505065505Class 2, 3R or 3B
AR500-1001009010010Class 2, 3R or 3B
AR500-2502508025025Class 2, 3R or 3B
AR500-50050012550050Class 2, 3R or 3B
AR500-75075014575075Class 2, 3R or 3B
AR500-10001,0002451,500200Class 2, 3R or 3B

AR550 High-Speed Laser Sensor

9 models · max rate 70 kHz · IP67 · Ethernet output: standard

Part numberRange (mm)Base distance (mm)Linearity (± µm)Resolution (µm)Laser
AR550-221530.2Class 3R
AR550-55157.50.5Class 3R
AR550-101025151Class 3R
AR550-25254537.52.5Class 3R
AR550-505065755Class 3B
AR550-1001009015010Class 3B
AR550-2502508037525Class 3B
AR550-50050012575050Class 3B
AR550-7507501451,12575Class 3B

AR700 Laser Displacement Sensor

15 models · max rate 9,400 Hz · IP67

Part numberRange (mm)Base distance (mm)Linearity (± µm)Resolution (µm)Laser
AR700-01253.17511.110.950.16Class 2
AR700-02506.3515.931.90.32Class 2
AR700-050012.725.453.80.64Class 2
AR700-125.438.17.61.3Class 2
AR700-250.860.3152.6Class 2 or 3R
AR700-2LR50.8132.1152.6Class 3R or 3B
AR700-4101.678.2315.1Class 2, 3R or 3B
AR700-6152.4177.8467.6Class 3R or 3B
AR700-8203.2203.46110.2Class 3R or 3B
AR700-12C304.8228.69115.2Class 3R or 3B
AR700-12304.8279.69115.2Class 3R or 3B
AR700-16406.4329.812220.5Class 3R or 3B
AR700-24609.6787.218330.5Class 3R or 3B
AR700-32812.8660.640641Class 3R or 3B
AR700-501,2707871,27063.5Class 3R or 3B

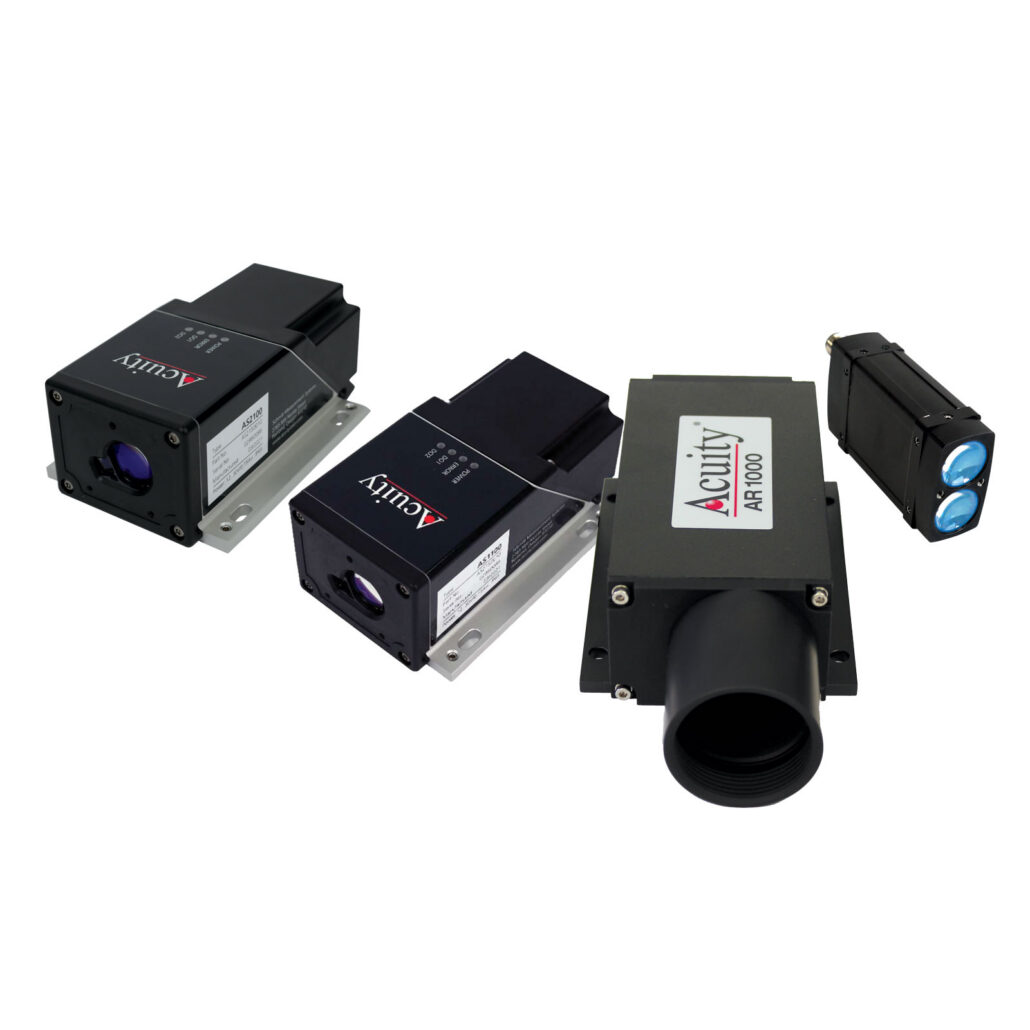

Long-range laser distance sensors (6 models)

Part numberRange, natural targetsRange, with reflectorAccuracyRepeatabilityMax rateOperating tempLaser
AS21000.05–100 mUp to 500 m±1 mm0.3 mm250 Hz−10 to 50 °CClass 2, visible red
AS2100 Extended Temp0.05–100 mUp to 500 m±1 mm0.3 mm250 Hz−40 to 60 °CClass 2, visible red
AS11000.05–100 m40–150 m±3 mm0.7 mm100 Hz−10 to 50 °CClass 2, visible red
AR10000.1–30 mUp to 150 m±3 mm≥0.5 mm50 Hz−10 to 50 °CClass 2, visible red
AR1000H0.1–30 mUp to 150 m±3 mm≥0.5 mm50 Hz−40 to 50 °CClass 2, visible red
AR27000.2–70 mUp to 270 m±60 mm±25 mm40 kHz−20 to 60 °CClass 1 eye-safe, infrared
Featured solution · Acuity Pre-Engineered Solutions

Pre-Engineered Laser Thickness Measurement System for Metals, Polymers, Wood Panels and More

Acuity's Pre-Engineered Laser Thickness Measurement System measures material thickness continuously at line speed and alerts operators the moment it drifts out of spec. It's built on a proven design, sensors and software, then configured for your line, with the control panel, documentation and training delivered as one system.

  • 10 to 1,000 readings per second from sensor pairs above and below the material
  • An Acuity-designed frequency generator fires every sensor at the same moment, so readings stay accurate on moving material
  • Run closer to the low end of your tolerance without crossing it
  • Cost-saving system: standard laser sensors and simple wiring instead of high-cost, specialized equipment
  • Fixed sensors with no moving parts: no maintenance beyond calibration
  • Up and running in under 1 hour once installed

Built for: metal strip and sheet, polymer sheet and panels, wood panels and plywood, flooring, board, insulation, rubber and film.

Laser sensor pairsAbove and below the material, fired in sync
Control panelIndustrial computer collecting data from every sensor
Acuity softwareLive thickness across the material, with out-of-spec alerts
Example applications:
Sensor (top)
MATERIAL → LINE DIRECTION
Sensor (bottom)
Control panel: industrial computer + Acuity software
Live thicknessContinuous · real time

Sensor pairs across the width, fired in sync, feeding one panel.

Top picks

Featured Laser Sensors

Our best seller plus three go-to sensors for long-range distance and short-range displacement measurement.

AS2100 long-range laser distance sensor, Acuity's best-selling sensor
Best seller · Long range

AS2100 Accurate Distance Sensor

Acuity's most popular sensor: ±1 mm accuracy outdoors, in bright light and on hot or dark targets.

±1 mmAccuracy
100 mNatural targets
500 mWith reflector

Best for: crane and AGV positioning, stockpile levels, cut-to-length

See AS2100 specs → Get a quote →
AS1100 long-range laser distance sensor
Long range · Lower cost

AS1100 Long Distance Sensor

The AS2100's rugged housing and outputs at a lower cost. Works outdoors, in bright light and on hot or dark surfaces, with an EtherNet/IP option.

±3 mmAccuracy
100 mNatural targets
150 mWith reflector

Best for: long-range jobs on a tighter budget, including hot materials

See AS1100 specs → Get a quote →
AR700 laser displacement sensor, Acuity’s most precise short-range sensor
Short range

AR700 Laser Displacement Sensor

Acuity’s most precise laser triangulation sensor, with 15 models from 3.2 to 1,270 mm and long standoff distances.

±0.03%Linearity
0.16 µmResolution
9.4 kHzMax speed

Best for: micron-level thickness and displacement

See AR700 specs → Get a quote →
AR200 laser measurement sensor, a non-contact replacement for LVDTs and contact gauges
Short range · Cost-effective

AR200 Laser Measurement Sensor

An attractively priced, non-contact replacement for LVDTs and contact gauges, with analog, serial and two limit outputs standard.

±0.1%Linearity
6.35–101.6 mmRanges
1,250 HzMax speed

Best for: cost-sensitive jobs and replacing LVDTs

See AR200 specs → Get a quote →
Applications

Laser Sensors for Hot, Harsh and Hard-to-Reach Measurements

Non-contact laser sensors measure where contact gauges and people can't safely go.

Concrete highway bridge pilings, a structure monitored for movement and settling

Structural monitoring

Track movement, deflection or settling in bridges, buildings, dams and other structures over time, without touching them.

Recommended: AS2100

Contact us about structural monitoring →
Molten aluminum being poured from a ladle

Molten metal fill levels

Measure the level of molten metal from a safe distance. A cooling enclosure with a built-in bandpass filter protects the sensor and cuts glare from the glowing surface.

Recommended: AS2100 + cooling enclosure

See the cooling enclosure →
Glowing hot steel pipe in a steel mill

Hot steel cut-to-length

Measure the length of hot, glowing steel bar, pipe and billet at the cut, so every piece comes off the line to size.

Recommended: AS2100, AS1100

See a hot steel example →
Contact us about your application →

Laser Sensor Specifications at a Glance

Top-of-family figures. Full specs are on each product page.

Acuity laser sensor families compared by models, measuring range, accuracy and maximum speed
Sensor familyModelsMeasuring rangeAccuracyMax speed
Short-range displacementAR100, AR200, AR500, AR550, AR7002 mm – 1,270 mmLinearity to ±0.03% of range (AR700)70 kHz (AR550)
Long-range distanceAS2100, AS1100, AR1000, AR2700100 m natural, 500 m reflective (AS2100)±1 mm (AS2100)40 kHz (AR2700)
White-light confocal1- and 2-channel controllers (incl. ZENITH) with confocal pensUp to 24 mm, depending on penLinearity to ±35 nm, depending on pen; ±0.6 µm proven on clear filmUp to 10 kHz (5 kHz on ZENITH)
2D/3D laser line scannersAP820 family, C6 compact 3D sensors5.9 mm – 400 mm Z-axis (AP820-5 to AP820-400)Linearity to ±0.06% of Z range (±3.5 µm on AP820-5)Up to 200 kHz profile rate (C6)
Need the details? Datasheets, user manuals, 3D CAD (STEP) files and configuration software for every sensor. Datasheets & CAD downloads →

About Acuity Laser

Acuity Laser is the leading provider of precision laser sensors for distance and thickness measurement. Founded in 1992 and based in Portland, Oregon, Acuity Laser is part of Schmitt Measurement Systems, Inc.

  • What we make: laser displacement sensors, long-range laser distance sensors, confocal sensors, 2D/3D laser line scanners and pre-engineered laser thickness measurement systems
  • Who uses them: manufacturers, system integrators and OEMs in metals and steel, lumber and wood products, rubber, tire and plastics, automotive, electronics, transportation, aerospace and defense, and research labs
  • How we help: engineer-to-engineer support to choose, configure and, when needed, customize the right sensor

Acuity Laser · 503-210-5733 ·

1992Designing laser sensors since
2 mm – 500 mMeasuring ranges covered
Pre-EngineeredThickness systems with sensors, control panel and software
SMSPart of Schmitt Measurement Systems, Inc.
15Industries served, from steel mills to research labs
CustomSensors built for OEMs, at low or high volume
More about Acuity →

Laser Measurement Sensor FAQs

What does Acuity Laser make?

Acuity Laser makes non-contact laser measurement sensors: short-range laser displacement sensors, long-range laser distance sensors, white-light confocal sensors, 2D/3D laser line scanners and compact 3D profile sensors, plus a Pre-Engineered Laser Thickness Measurement System.

What is Acuity's thickness measurement system?

Acuity's Pre-Engineered Laser Thickness Measurement System is a complete, ready-to-run system that measures material thickness inline. It's built on a proven design, sensors and software, and Acuity configures it for your line, so you skip the months of custom engineering a one-off gauge needs.

How do laser sensors measure thickness?

If the material rests on a reference surface, one sensor measures its top surface. If it's moving freely, two opposed sensors measure both sides at the same instant and the difference gives the thickness.

What is an alternative to X-ray or contact thickness gauges?

Acuity's Pre-Engineered Laser Thickness Measurement System uses non-contact laser sensors. Unlike contact gauges, nothing touches the material or wears over time, and unlike X-ray gauges it uses standard laser sensors and simple wiring instead of high-cost, specialized equipment.

How quickly is the thickness system running after installation?

Once the sensors and mounting are installed, the system is up and running and measuring in under 1 hour. Mounting time depends on your line.

What is Acuity's best-selling sensor?

The AS2100 long-range laser distance sensor. It holds ±1 mm accuracy with 0.3 mm repeatability, up to 100 m on natural surfaces and 500 m with an Acuity reflective target, and works outdoors, in bright light and on hot or dark targets.

What is the difference between the AS2100 and the AS1100?

Both are long-range laser distance sensors with the same housing and outputs. The AS2100 is more accurate (±1 mm vs. ±3 mm), faster (250 Hz vs. 100 Hz) and reaches 500 m with an Acuity reflective target, compared with 150 m for the AS1100. Choose the AS1100 when you need long range at a lower cost.

Can laser sensors measure hot or molten metal?

Yes. The AS2100 works on hot and dark surfaces. For molten metal, add the AS2100 cooling enclosure with its built-in bandpass filter.

What measuring ranges do Acuity sensors cover?

Short-range sensors cover 2 mm to 1,270 mm. Long-range sensors reach 100 m to natural targets and 500 m to reflective targets (AS2100), with up to 40,000 readings per second on the AR2700. Confocal sensors handle sub-micron work on clear and reflective surfaces.

How do I choose the right laser sensor?

Start with what you need to measure. For thickness of sheet, strip or board, look at the Pre-Engineered Laser Thickness Measurement System or AR700 sensors. For long distances, the AS2100. For close-range position and height, the AR100 to AR700 laser displacement sensors. For profiles and shape, the AP820 or C6 scanners. For clear or shiny surfaces, confocal sensors. Contact us and an Acuity sales engineer will recommend a sensor for your application.

Can Acuity customize a sensor?

Yes. Acuity builds customized sensors and small solutions for both low- and high-volume customers, including OEMs.

Who uses Acuity sensors?

Manufacturers, system integrators and OEMs in metals and steel, lumber and wood products, rubber, tire and plastics, automotive, electronics, transportation, aerospace and defense, and research labs.

Who owns Acuity Laser?

Acuity Laser is a product line of Schmitt Measurement Systems, Inc. (SMS), a U.S. maker of precision process measurement systems.

Where is Acuity Laser located?

Acuity Laser is based in Portland, Oregon, USA, and serves customers all over the world. Call 503-210-5733 or contact us.

Acuity Laser
Privacy Overview

This website uses cookies so that we can provide you with the best user experience possible. Cookie information is stored in your browser and performs functions such as recognising you when you return to our website and helping our team to understand which sections of the website you find most interesting and useful.
